Mobile Aluminum Scaffolding with Solar Panel Lift System

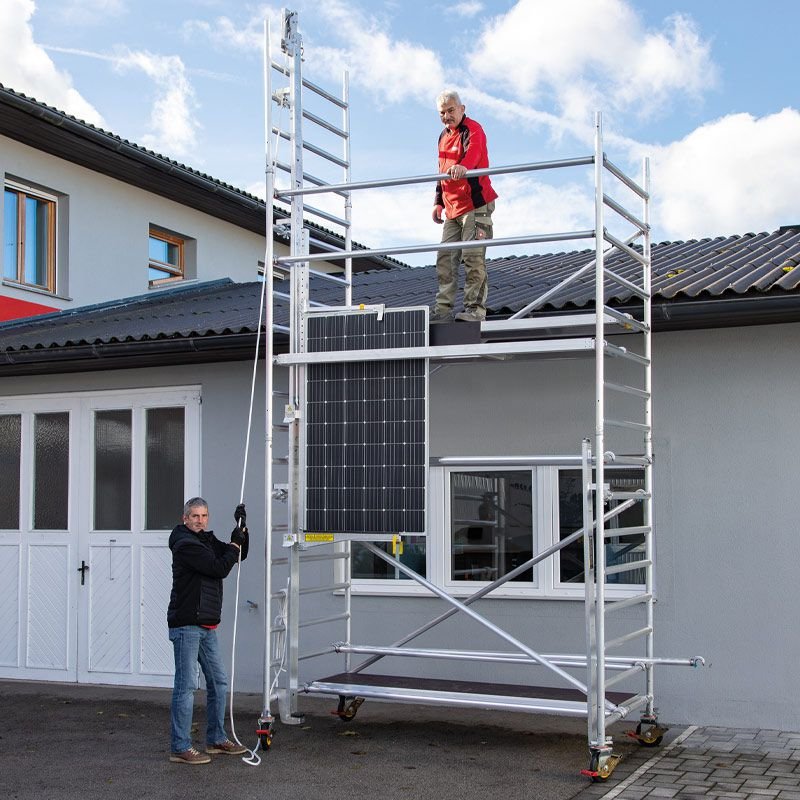

CUSTERS mobile aluminum scaffolding with solar panel lift system
Professional Custers Hydraulica mobile scaffolding with solar panel lift system up to a floor height of max. 12m.
The solar panel lift system is compatible with Safe Guard and Mobile Guard mobile aluminum scaffolding, which are also part of our portfolio.
The primary goals of this addition are to increase worker safety when handling solar panels, simplify and streamline the movement of solar panels to the site of ongoing work, as well as minimize the risk of damage to the panels caused, for example, by a panel falling from a height.
Installation of the panel lift system is extremely simple, when a guide rail with a module designed to place the solar panel and a lifting system is practically installed on the scaffolding frame. The frame designed to place the panel is adjustable, i.e. it allows for the safe placement of panels of various sizes.
The panel lift itself is then carried out using a fixed rope, and if the rope is accidentally released, the brake is immediately activated to prevent the panel from falling from a height.
Product specifications
Mobile aluminum scaffolding compatible with the current European standard EN 1004 on mobile working scaffolds
TÜV Certification
Scaffolding class 3 - max. working load 200kg/m²
Solar panel lift system to a floor height of max. 12m using 1m and 2m guide rails stacked vertically on top of each other and fixed to the scaffolding frame from the inside
Possibility of lifting panels of various sizes thanks to the possibility of adapting the frame designed to accommodate the panels
Fixed rope with a winch equipped with an automatic reverse brake
Recommended combination with a floor with a specifically designed cover for solar panels (Solar Platform)
Made in the Netherlands
